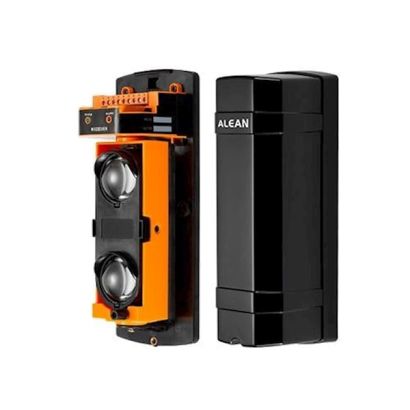

ActiView AV-ABT-100 photoelectric Twin Beam Detector 100m

ActiView AV-ABT-100 photoelectric Twin Beam Detector 100m

Simultaneous interruption of 2 infrared beams, response speed 12-250m sec adjustable. Alarm output: switch signal output(NO/NC).

Key Features:

• Detection range: 100 metres
• Barrier: including 2 beams
• Detection: by simultaneous interruption of 2 beams
• 4 different frequencies by DIP Switch
• Alarm output: 1 relay output maximum AC/DC30V, 1.0A
• Barrier operates at outdoor temperature: between -25ºC ~ +55ºC
• Power supply: 12V. (current 200 mA. maximum)
• Dimensions: 212(H) x 80(W) x 75(D) mm
• Weight 1000g
