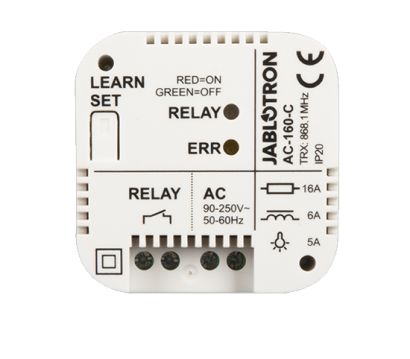

Jablotron AC-160-C wireless Relay (max 16A, 250V AC)

Jablotron JA-160-C mounting-box-fitted wireless multi-functional power relay, it can be installed as a stand-alone device without a link to a control panel.

Switching relay with galvanic safety separation for 230V / 16A power loads.

Verfügbarkeit: Auf Lager

Artikelnummer

AC-160-C

Partnerprogramm Rabatt Kundenservice Widerrufsrecht

Befreiung von der MwSt Weltweiter Versand Helpdesk +31 207 372 372

Haben Sie eine Frage zu diesem Produkt?

Frage stellen

Einzelheiten

AC-160-C Mounting-box-fitted multifunctional power relay

The relay can also be installed as an autonomous device responding to the activation of unidirectional wireless detectors of the JA-15x series. In this case, the relay triggers according to the mode selected for the particular detector (5 selectable modes: extended copy, impulse, change status, switch off and block).

It provides a switching relay with galvanic safety separation for switching 230V/16A power loads.

In the control panel it occupies one position (zone).

Specifications AC-160-C

Rated supply voltage	100-230 V, 50-60 Hz
Internal power consumption at 230V AC (min / max)	0.2 W / 0.7 W
Operating frequency	868.1 MHz, Jablotron protocol
Antenna	internal
Contact load capacity – protection class II	Max. switched voltage 250 V AC Resistance load (cosφ=1) max. 16 A Inductive, capacitive load (cosφ=0.4) max. 8 A Halogen lighting max. 1000 W Minimum switched DC power 0.5 W
Diameter of connected conductors	max. 2 x 1.5 mm2 ; max. 1 x 2.5 mm2
Ingress protection class	IP20
Dimensions	49 x 49 x 26 mm
Operating temperature range	-10 °C to + 40 °C, RH 75% non-condensing
In conformity with	ETSI EN 300 220-1, EN 50130-4, EN 55022, EN 60950-1
Operating conditions	ERC REC 70-03
