Ajax Panic Button / Remote Control

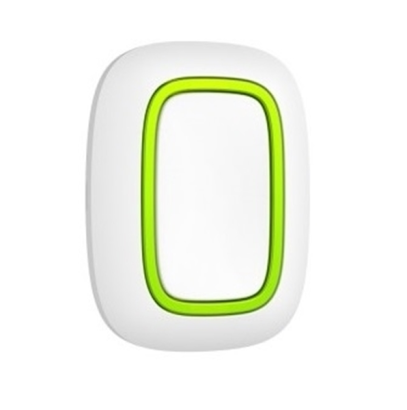

Ajax Button

The Ajax button is a small panic button that can be used for multiple purposes and perform various functions. It can be used as a panic button; so that employees can be on site quickly, a help button; for possible assistance with questions, or as a control button for other actions, such as opening a gate or garage.

Panic Mode

Press the panic button to instantly call a security company patrol and alert all the system users about the danger.

Raise an alarm
A detached house. The sound of a broken glass and unfamiliar voices wake up the owners in a middle of the night. Instead of grabbing a bat they press the Button to let the security patrol deal with the thieves.

Control Mode

Turn off the lights, switch on home appliances, lower the roller blinds or open the gate with a single click. The Button is always at hand to help you control things.

Automate routine actions
Click Button as you close the shop for night. It’s located right by the entrance door so you can avoid wearisome routine. Switch off the house lights, shop-window illumination and all of the signs simultaneously. Next morning, click once again to prepare your business for welcoming the new customers.

Guarantees alarm delivery

Ajax panic button communicates with a hub using Jeweller radio protocol on a distance of up to 1300 m. Once it delivers an alarm, you’ll see a green blink. Jeweller encrypts all of the transmitted data. In case of signal interference or radio jamming, Ajax system switches the radio frequency and notifies you as well as the security company about the situation.

Specifications

Classification: Addressed Radio Panic Button
Compatibility: Operates with Hub, Hub Plus, Hub 2, ReX
False alarm prevention: Yes (in the Panic mode)
Number of buttons: 1
Alarm transmission: Not longer than 0,15 sec. Active from the first click (no need to wake it up)
Jeweller radio technology: Communication range with a hub — up to 1300 m in an open area, Two-way communication channel, Operating frequencies — 868.0 - 868.6 MHz, Self-adjusting RF output power — up to 20 mW, Block encryption based on AES algorithm, Frequency hopping
Power supply: Battery: CR2032 battery, 3 V
Battery life: Up to 5 years
Operating temperature range: From -10°C to +40°C
Permissible humidity: Up to 75%
Protection class: IP55
Size: 47 × 35 × 13 mm
Weight: 16 g
Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Complete set: Panic button, Pre-installed CR2032 battery, Double-sided tape, Quick Start Guide
