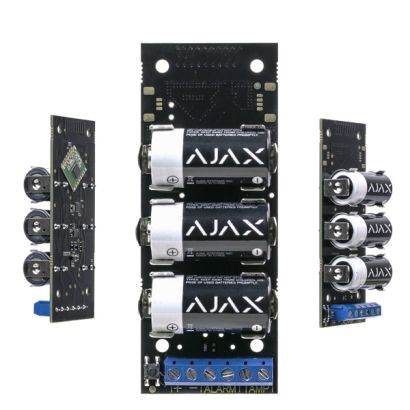

Ajax Transmitter
Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system.
Availability: In stock
SKU
AJ-TRANSMITTER
Ajax Transmitter
The device receives the activation signal from the detector via wired input and sends an alarm to the hub.
Features
It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened.
Installation and set up
It is installed in the enclosure of outdoor detectors or a mounting box.
Specifications
- Use: Indoor
- Actuator: Relay potential free
- Relay service life: 200,000 switchings
- Power supply voltage: 7-36V DC
- Maximum load current: 5А
- Minimum voltage protection: Yes (6,5V)
- Maximum voltage protection: Yes (36,5V)
- Allowed operating ambient temperature: From 0°С (+32°F) to +64°С(+147.2°F)
- Maximum temperature protection: Yes (65°С (+149°F) inside the wall plate)
- Communication protocol: Jeweller (868.0-868.6 MHz)
- Radio signal power: 25 mW
- Command response time: Less than a second
- Maximum distance between detector and central unit: Up to 1,000 m (3,300 ft) (in open area)
- Power consumption in standby mode: Less than 1 W
- Ingress protection: IP20
- Operating humidity: Less than 75%
- Dimensions: 38х25х18 mm (1.49×0.98×0.70 in)
- Dimensions for mounting in the wall plate: Ø ≥ 50, depth 55 mm (2.17 in)
Customer Reviews
Product Questions
Are all detectors including mounting plates?
Question by: David on Oct 21, 2024, 2:01 PM
Correct! All detectors are including the mounting plate.
Regards
Regards
Answer by: Frank Ligthart (Admin) on Oct 21, 2024, 2:03 PM
