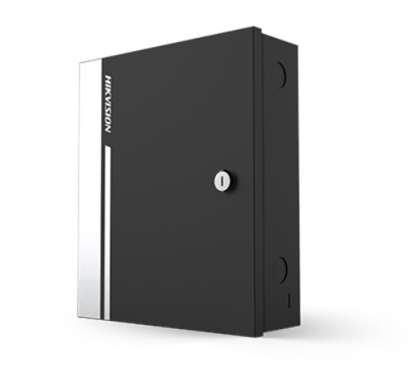

Hikvision DS-K2804 Basic+ Access Network Controller, 4 doors

The DS-K2804 access network controller from Hikvision for 4 doors.

The access control from the Basic+ series supports cards and codes.

Availability: In stock
SKU
DS-K2804
€225.00 €185.95
Do you have a question about this product?
Frank

Hikvision access control combines all disciplines into one VMS, one software package!

In addition to video and intercom, this addition also allows access control. The choice of space for door controllers, card readers, fingerprint scanners and other innovation equipment make it a very satisfactory solution. You can configure groups of users and log-in data, access cards and codes. Hikvision access control from the Basic+ series supports cards and codes.

The DS-K2800 series access controller is designed with the latest structure with the TCP / IP and RS485 communication interface. The communication data is encrypted to improve the security of the system. The controller also supports offline operation and is designed with sabotage switch.

Presence functions ensure that you can see how long employees have been in the building. When you add the hourly rate, the system immediately informs you of the costs. Overtime and absence can also easily be filtered.

You can load a map to easily see where the controller is and click on the corresponding camera. Link the cameras with events so that there are video pop-ups with live images and captured images. You can look back at this right away.


Compare the K2800 series with the K2600 series

DS-K2800 DS-K2600
Wiegand
R-485 x
Fingerprint  x
Power supply for Lock  x
Anti PassBack x
First Card / Super Card
Memory (cards / events)  50.000 - 50.000 100.000 - 300.000


Specifications DS-K2804

System Parameters
Storage: 10,000 valid cards and 50,000 card swiping records
Processor: 32-bit
Device Interfaces
Output Interface: Lock Relay × 4, Alarm Relay × 4
Uplink Communication Interface: TCP/IP Network Interface
Input Interface: Door Sensor×4, Exit Button×4, Case Input×4
Downlink Communication Interface: Wiegand (W26/W34)
Accessible Card Reader: 4 Card Readers (Wiegand Interface) Connectable
General
Working Voltage: DC 12V
Power Dissipation (with Load): ≤100W
Power Consumption: ≤3.5W(without load)
LED Indicator: Power Supply Status, Communication Status, Abnormal Status
Certification: CE, FCC
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 285mm × 237mm × 69mm (11.22" × 9.33" × 2.72")
