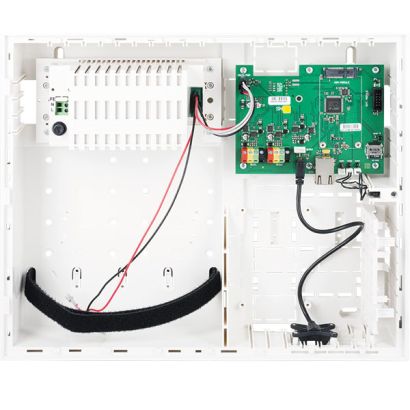

Jablotron JA-107K LAN Control Panel

Jablotron JA-107K LAN Control Panel 8 5 5 1

The Jablotron JA-107K is the NEW advanced control panel of the Jablotron 100+ system. It offers flexible setting and allows the smart protection, access control, temperature control etc, with the possible use of 15 sections in the system.

Size: 360 x 300 x 105mm

Availability: In stock
SKU
JA-107K
Do you have a question about this product?
Frank

The JA-107K is an advanced control panel in the JABLOTRON 100+ alarm system. It offers flexible setting and allows the smart protection of bigger family houses, offices or companies as well as allowing flexible solutions for apartment complexes, office buildings or companies with a need to use many sections in the system. The desired settings and the size of the system is programmed by the F-Link software.


The JA-107K offers:

  • up to 230 zones (120 wireless)
  • up to 600 user codes
  • up to 15 sections
  • up to 128 programmable outputs (32 wireless)
  • 64 independent calendars
  • SMS reports from the system to 50 users
  • 5 ARC's


The JA-107K control panel has:

  • two independent BUS terminals for connections
  • 1 connector for a radio module (JA-111R)
  • 1 connector for the GSM module (JA-192Y or JA-194Y)


Compare the 107K with the 106K control panel

JA-100K
JA-103K Comparison Control Panels
JA-106K JA-107K
868 MHz 868MHz Communication protocol 868 MHz 868MHz
32 50 wireless or BUS hardwired zones 120 230
32 50 Number of user codes 300 600
4 8 Number of sections 15 15
4 32
Number of programmable outputs (PG) 32 128
10 20 Number of independent calendars 20 64
8 8 No of users system reports to by sms 30 50
268x225x83 268x225x83 Dimensions in mm 360x300x105 360x300x105
JA-191Y module JA-194Y module Build in GSM / GPRS communicator Yes JA-194Y module
Yes Yes Built in LAN communicator Yes Yes
Yes Yes MyJablotron App (Web-Self-Service) Yes Yes


ncp insert certification

Specifications JA-107K

Control panel power supply ~ 110 – 230 V/50 – 60 Hz, max. 0.85 A with fuse F1.6 A/250 V, Protection class II
Back-up battery 12 V; 7 to 18 Ah (lead gel)
Maximum battery charging time 48 h
BUS voltage (red - black) 12.0 to 13.8 V
Maximum continuous current consumption from the control panel 2000 mA permanent
3000 mA for 60 minutes
(max. 2000 mA for one BUS)
Max. continuous current consumption for back-up 12 hours Without GSM communicator LAN – OFF: 1135 mA
LAN – ON: 1107 mA
With GSM communicator LAN – OFF: 1100 mA
LAN – ON: 1072 mA
Max. continuous current consumption for back-up 24 hours Without GSM communicator LAN – OFF: 535 mA
LAN – ON: 499 mA
With GSM communicator

LAN – OFF: 530 mA

LAN – ON: 494 mA

Maximum number of devices 230
LAN communicator Ethernet interface, 10/100BASE
Dimensions 357 x 297 x 105 mm
Weight with/without AKU 7027 g/1809 g
Reaction to invalid code entry Alarm after 10 wrong code entries
Event memory Approx. 7 million latest events, including date and time
Power supply unit Type A according to EN 50131-6
T 031 note: In case of a main power failure is the system backed up for 24 hours and at the same time is a failure report sent to the ARC.
GSM communicator 850 / 900 / 1800 / 1900 MHz
Classification Security grade 2 according to EN 50131-1
Operational environment Environmental class II (indoor general) according to EN 50131-1
Operational temperature range -10 °C to +40 °C
Average operational humidity 75 % RH, non-condensing
Complies with EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, EN 50131-10,
EN 50136-1, EN 50136-2, EN 50581
Radio operating frequency (with the JA 11xR module) 868.1 MHz
Radio emissions ETSI EN 300 220-1,-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM)
EMC EN 50130-4 ed. 2+A1, EN 55032 ed. 2, ETSI EN 301 489-7
Safety conformity EN 62368-1+A11
Caller identification (CLIP) ETSI EN 300 089
Operational conditions ERC REC 70-03
Certification body Trezor Test s.r.o. (no. 3025)
