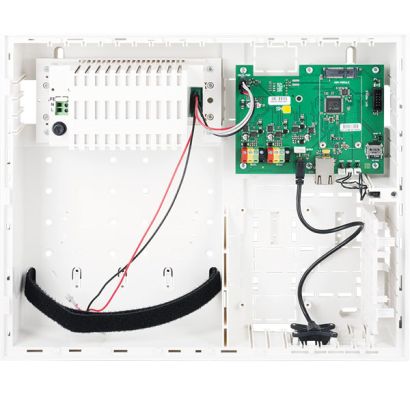

Jablotron JA-107KR LAN Control Panel

The Jablotron JA-107KR is the NEW advanced control panel of the Jablotron 100+ system. It offers flexible setting and allows the smart protection, access control, temperature control etc, with the possible use of 15 sections in the system.

Size: 360 x 300 x 105mm

Availability: In stock

SKU

JA-107KR

Partner Discount Customer Service Right of Withdrawal

Exemption from VAT Worldwide Shipping Helpdesk +31 207 372 372

Do you have a question about this product?

Ask Question

Details

The JA-107KR is an advanced control panel in the JABLOTRON 100+ alarm system with radio module. It offers flexible setting and allows the smart protection of bigger family houses, offices or companies as well as allowing flexible solutions for apartment complexes, office buildings or companies with a need to use many sections in the system. The desired settings and the size of the system is programmed by the F-Link software.

The JA-107KR offers:

up to 230 zones wired (max 120 wireless)
up to 600 user codes
up to 15 sections
up to 128 programmable outputs (32 wireless)
64 independent calendars
SMS reports from the system to 50 users
5 ARC's

The JA-107K control panel has:

two independent BUS terminals for connections
1 connector for a radio module (JA-111R)
1 connector for the GSM module (JA-192Y or JA-194Y)

Compare the 107KR with the 103KR control panel

JA-100KR	JA-103KR	Comparison Control Panels	JA-106KR	JA-107KR
868 MHz	868MHz	Communication protocol	868 MHz	868MHz
32	50	wireless or BUS hardwired zones	120	230
32	50	Number of user codes	300	600
4	8	Number of sections	15	15
4	32	Number of programmable outputs (PG)	32	128
10	20	Number of independent calendars	20	64
8	8	No of users system reports to by sms	30	50
268x225x83	268x225x83	Dimensions in mm	360x300x105	360x300x105
JA-191Y module	JA-194Y module	Build in GSM / GPRS communicator	Yes	JA-194Y module
Yes	Yes	Built in LAN communicator	Yes	Yes
Yes	Yes	MyJablotron App (Web-Self-Service)	Yes	Yes

ncp insert certification

Specifications JA-107K

Control panel power supply	~ 110 – 230 V/50 – 60 Hz, max. 0.85 A with fuse F1.6 A/250 V, Protection class II
Back-up battery	12 V; 7 to 18 Ah (lead gel)
Maximum battery charging time	48 h
BUS voltage (red - black)	12.0 to 13.8 V
Maximum continuous current consumption from the control panel	2000 mA permanent 3000 mA for 60 minutes (max. 2000 mA for one BUS)
Max. continuous current consumption for back-up 12 hours	Without GSM communicator	LAN – OFF: 1135 mA LAN – ON: 1107 mA
	With GSM communicator	LAN – OFF: 1100 mA LAN – ON: 1072 mA
Max. continuous current consumption for back-up 24 hours	Without GSM communicator	LAN – OFF: 535 mA LAN – ON: 499 mA
	With GSM communicator	LAN – OFF: 530 mA LAN – ON: 494 mA
Maximum number of devices	230
LAN communicator	Ethernet interface, 10/100BASE
Dimensions	357 x 297 x 105 mm
Weight with/without AKU	7027 g/1809 g
Reaction to invalid code entry	Alarm after 10 wrong code entries
Event memory	Approx. 7 million latest events, including date and time
Power supply unit	Type A according to EN 50131-6 T 031 note: In case of a main power failure is the system backed up for 24 hours and at the same time is a failure report sent to the ARC.
GSM communicator	850 / 900 / 1800 / 1900 MHz
Classification	Security grade 2 according to EN 50131-1
Operational environment	Environmental class II (indoor general) according to EN 50131-1
Operational temperature range	-10 °C to +40 °C
Average operational humidity	75 % RH, non-condensing
Complies with	EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, EN 50131-10, EN 50136-1, EN 50136-2, EN 50581
Radio operating frequency (with the JA 11xR module)	868.1 MHz
Radio emissions	ETSI EN 300 220-1,-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM)
EMC	EN 50130-4 ed. 2+A1, EN 55032 ed. 2, ETSI EN 301 489-7
Safety conformity	EN 62368-1+A11
Caller identification (CLIP)	ETSI EN 300 089
Operational conditions	ERC REC 70-03
Certification body	Trezor Test s.r.o. (no. 3025)

Reviews

Blog Posts (3)

Product Questions 1

Product Questions

>> Est-ce que cette centrale est compatible avec les détecteur de fumée JA-85ST ?
>> Is this control panel compatible with JA-85ST smoke detectors?
>> Ist diese Steuereinheit mit den Rauchmeldern JA-85ST kompatibel?

Question by: Py Gérard on Oct 29, 2024, 8:26 AM

>> Non, tous les composants OASiS 80 ne sont pas compatibles avec la série Jablotron 100. Les composants OASiS 80 ne peuvent être enregistrés qu'avec le module radio JA-110R-80 pour les centrales 100.
>> Nein, nicht alle OASiS 80-Komponenten sind mit der Jablotron 100-Serie kompatibel. Nur mit dem JA-110R-80-Funkmodul für die 100er-Zentralen können die OASiS 80-Komponenten angemeldet werden.
>> No, all OASiS 80 components are not compatible with the Jablotron 100 series. Only with the JA-110R-80 radio module for the 100 control panels the OASiS 80 components can be enrolled.

Answer by: FM Ligthart (Admin) on Oct 29, 2024, 11:13 AM
