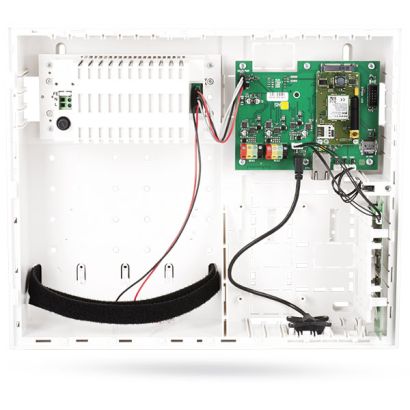

Jablotron JA-107KRY Control Panel + LAN, 4G GSM and Radio module

Jablotron JA-107KRY Control Panel + LAN, 4G GSM and Radio module 2 5 5 1

The Jablotron JA-107K with LAN and 4G GSM is the NEW advanced control panel of the Jablotron 100+ system.

The control panel offers flexible settings and smart protection, access control, temperature control etc..

Availability: In stock

SKU

JA-107KRY

Partner Discount Customer Service Right of Withdrawal

Exemption from VAT Worldwide Shipping Helpdesk +31 207 372 372

Do you have a question about this product?

Ask Question

Details

The JA-107KRY is an advanced control panel in the JABLOTRON 100+ alarm system. It offers flexible setting and allows the smart protection of bigger family houses, offices or companies as well as allowing flexible solutions for apartment complexes, office buildings or companies with a need to use many sections in the system. The desired settings and the size of the system is programmed by the F-Link software.

The JA-107KRY offers:

up to 230 zones (120 wireless)
up to 600 user codes
up to 15 sections
up to 128 programmable outputs (32 wireless)
64 independent calendars
SMS reports from the system to 50 users
5 ARC's

The JA-107KRY control panel has:

two independent BUS terminals for connections
the JA-111R Radio module
the JA-194Y 4G GSM module

Compare the 100KR/JA-103KRY with the 106KR/JA-107KR control panel

JA-100KR	JA-103KR	Comparison Control Panels	JA-106KR	JA-107KR
868 MHz	868MHz	Communication protocol	868 MHz	868MHz
32	50	wireless or BUS hardwired zones	120	230
32	50	Number of user codes	300	600
4	8	Number of sections	15	15
4	32	Number of programmable outputs (PG)	32	128
10	20	Number of independent calendars	20	64
8	8	No of users system reports to by sms	30	50
268x225x83	268x225x83	Dimensions in mm	360x300x105	360x300x105
JA-191Y module	JA-194Y module	Build in GSM / GPRS communicator	Yes	JA-194Y module
Yes	Yes	Built in LAN communicator	Yes	Yes
Yes	Yes	MyJablotron App (Web-Self-Service)	Yes	Yes

ncp insert certification

Specifications JA-107K

Power	230 V / 50 Hz, 0.2 A max, Class II
Backup battery	12V, 18Ah (7 to 35Ah) - not included
Maximum time to recharge the battery	72 hours
Max permanent current from the CP	1.2 A
Max continuous load with 12 hour backup	1.2 A with battery 18Ah
Max number of devices	120
LAN communicator	Ethernet interface
Power supply	Type A (EN 50131-6)
GSM QUAD-BAND communicator	850/900/1800/1900MHz
Operating frequency (with JA-110R)	868 MHz ISM band
Alarm code blocking	after 10 incorrect code entries
Event memory	recent events including date and time
Security level	2 according to EN50131-1, EN 50131-3, EN 50131-6, EN 50131-5-3
Environment	class II. internal (-10 to +40 ° C), EN 50131-1
Radio emissions	ETSI EN 300220 (R module), ETSI EN 301 419-1, EN 301 511
EMC	EN 50130-4, EN 55022, ETSI EN 301 489-7
Safety	EN 60950-1
Operating conditions	ERC REC 70-03
Caller ID (CLIP)	ETSI EN 300 089

Reviews 2

Customer Reviews

100%

2 Reviews

5 stars 2 (100%)

4 stars 0 (0%)

3 stars 0 (0%)

2 stars 0 (0%)

1 star 0 (0%)

With Pictures

Verified Buyers

Sort by

Rating

Newest

Helpfulness

Ralf

Verified Buyer

The consulting is very good.

04 Nov 2024

The consulting is very good. I ordered following devices and they are working very good together and delivering was quickly. Thank you very much.

Was this review helpful? 0 0

Ted

Verified Buyer

Good, accurate and quick

05 Feb 2020

Bought this alarm after consulting Credex. They have a very nice support, quick and good recommondations. Delivery was very quick. This alarm is perfect when you want to make a coupling to Zwave devices. I am using an output card and fibaro plug to do this. See the blog on this page

Was this review helpful? 2 0

Blog Posts (4)

Product Questions 1

Product Questions

>> Est-ce que cette centrale est compatible avec les détecteur de fumée JA-85ST ?
>> Is this control panel compatible with JA-85ST smoke detectors?
>> Ist diese Steuereinheit mit den Rauchmeldern JA-85ST kompatibel?

Question by: Py Gérard on Oct 29, 2024, 8:26 AM

>> Non, tous les composants OASiS 80 ne sont pas compatibles avec la série Jablotron 100. Les composants OASiS 80 ne peuvent être enregistrés qu'avec le module radio JA-110R-80 pour les centrales 100.
>> Nein, nicht alle OASiS 80-Komponenten sind mit der Jablotron 100-Serie kompatibel. Nur mit dem JA-110R-80-Funkmodul für die 100er-Zentralen können die OASiS 80-Komponenten angemeldet werden.
>> No, all OASiS 80 components are not compatible with the Jablotron 100 series. Only with the JA-110R-80 radio module for the 100 control panels the OASiS 80 components can be enrolled.

Answer by: FM Ligthart (Admin) on Oct 29, 2024, 11:13 AM
