Jablotron JK-103KRY PLUS, 4G GSM + LAN wireless Alarm Kit

Jablotron JK-103KRY PLUS, 4G GSM + LAN wireless Alarm Kit 4 5 5 1

The new Jablotron JK-103KRY is a kit including radio module, 4G GSM and LAN.

It offers flexible settings and allows easy wireless protection.

+ MyCredex Priority Support = LifeTime online support service

Availability: In stock
SKU
JK-103KRY-PLUS
Do you have a question about this product?
Frank

Jablotron JK-103KRY PLUS, GSM + LAN wireless Alarm Kit

The JK-103KRY kit offers flexible setting and allows easy protection for small premises, bigger family houses, offices and companies. It is equipped with a JA-111R radio module. The desired settings programmed by F-link software.

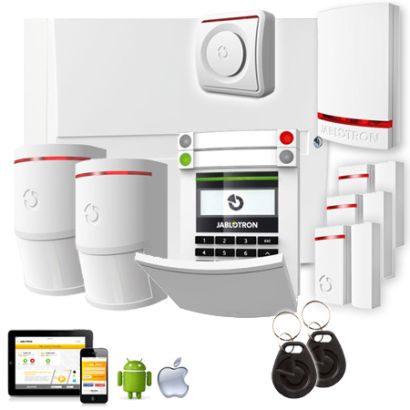

The Jablotron 103KRY PLUS kit contains

JA-103KRY - 4G control panel, check the link JA-103KRY for more information;
JA-154E - wireless keypad, check the link JA-154E for more information (1x JA-192E included);
JA-192E - control segment for keypad, check the link JA-192E for more information;
JA-110A - wired indoor siren, check the link JA-110A for more information;
JA-163A - wireless outdoor siren, check the link JA-163A for more information;
JA-150P - 2x wireless movement detector (PIR), check the link JA-150P for more information;
JA-151ST-A - fire detector, check the link JA-151ST-A for more information;
JA-151M - 3x wireless mini magnet contact, check JA-151M for more information;
JA-192J - 2x key tag - check the link JA-192J for more information;
SA-214 - battery for emergencies, check the link SA-214 for more information.


The JK-103KRY offers

  • up to 50 wireless or BUS hardwired zones
  • up to 50 user codes
  • up to 8 sections
  • up to 32 programmable outputs
  • 20 independent calendars
  • system reports to 8 users by SMS
  • 4 ARC settings
  • 4 selectable reports to ARC

ncp insert certifications

Specifications JA-103KRY

Power source 230 V / 50 Hz, max. 0.1 A, security class II
Backup battery 12V; 2.9Ah (2.2 to 7Ah)
Maximum time needed for battery recharge 72 h
Max. continuous control panel current output 400 mA
Max. continuous current output for 12 hour backup 125 mA with a 2.6Ah battery
Max. number of enrolled devices 50
LAN communicator Yes
Battery A type (EN 50131-6)
QUAD-BAND GSM communicator 4G (LTE) 800 / 900 / 1800 / 2100 / 2600 MHz (B20, B8, B3, B1, B7)
Operating frequency JA-111R module 868.1 MHz ISM band
Invalid code-entries exceeded After 10 incorrect code entries
Event memory approx. 1 million of the latest events including date and time
Security rating 2 according to EN 50131-1, EN 50131-3-6, EN 50131-5-3
Operating environment Class II indoor general (-10 to +40°C), according to EN 50131-1
Radio transmission conformity ETSI EN 300220 (R module), ETSI EN 301 419-1, EN 301 511
EMC conformity EN 50130-4, EN 55022, ETSI EN 301 489-7
Security conformity EN 60950-1
Can be operated according to ERC REC 70-03
CLIP protocol (caller ID + SMS) ETSI EN 300 089


Compare the 103KRY with the 107KRY control panel

JA-103KRY
Comparison control panels JA-100 alarm system
JA-107KRY
868 MHz  Communication protocol radio module 868 MHz
50 Number of wireless or BUS hardwired zones 230
50 Number of user codes 600
8 Number of sections 15
32   Number of programmable outputs 128
20 Number of independant calenders / timers 64
8 Number of users system reports to by sms 50
258 x 214 x 77 mm Dimensions 360 x 300 x 105 mm
Optional 2G or 4G GSM / GPRS communicator Optional 2G or 4G
yes Built in LAN communicator yes
yes MyJablotron App yes
Private / Business
Use
Private + / Business +
