DE06-12V DC / 0,5A Power Adapter

12V DC / 0,5A Power Adapter with a 1.1m ﬂexible cable terminated by a plug is intended for powering Jablotron devices.

Disponibilité: En stock

Sku

DE06-12

Réduction Partenaires Service client Droit de rétractation

Exonération de la TVA Expédition Helpdesk +31 207 372 372

Vous avez une question sur ce produit?

Poser une question

Détails

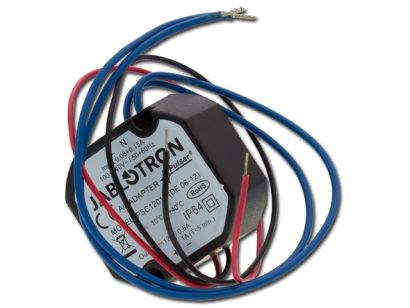

DE06-12 Power supply 12V / 0.5A

Power adaptor with a 1.1 m ﬂexible cable terminated by a plug is intended for powering Jablotron devices like wireless keyboards, GSM communicators or UC receivers etc.

The compact dimensions of the case allow installation into a standard electro-installation wall box for hidden installation beneath Jablotron wall-box-mounted products such as the above-mentioned items. The screw holes for M3 screws are also useful for installation in typical fuse/switch boxes where fixing is required.

Specifications DE06-12

Supply voltage	100 ~ 240VAC, class protection II
Output voltage	12V DC (±2%)
Output current	500 mA
Peak output current T<5 min	1000 mA
Output power	12W max.
Short-circuit protection and overload protection	yes
Casing	IP64
Dimensions	50 x 48 x 25 mm
Input cables,	length 110 mm (230 V), diameter 1.3 mm (AWG 16)
Operational conditions according to	EN 50131-1 II. Environmental class
Working temperature range	-10°C to +40°C
Complies with	EN 50130-4, EN 55022, EN 60950-1
