Jablotron JK-103KRY PLUS, 4G GSM + LAN wireless Alarm Kit

The new Jablotron JK-103KRY is a kit including radio module, 4G GSM and LAN.

It offers flexible settings and allows easy wireless protection.

+ MyCredex Priority Support = LifeTime online support service

Disponibilité: En stock

Sku

JK-103KRY-PLUS

Réduction Partenaires Service client Droit de rétractation

Exonération de la TVA Expédition Helpdesk +31 207 372 372

Select your Keypad:

Outdoor Siren cover color:

Quantité

Vous avez une question sur ce produit?

Poser une question

Détails

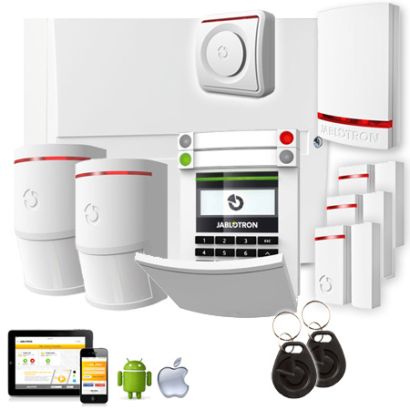

Jablotron JK-103KRY PLUS, GSM + LAN wireless Alarm Kit

The JK-103KRY kit offers flexible setting and allows easy protection for small premises, bigger family houses, offices and companies. It is equipped with a JA-111R radio module. The desired settings programmed by F-link software.

The Jablotron 103KRY PLUS kit contains

► JA-103KRY - 4G control panel, check the link JA-103KRY for more information;
► JA-154E - wireless keypad, check the link JA-154E for more information (1x JA-192E included);
► JA-192E - control segment for keypad, check the link JA-192E for more information;
► JA-110A - wired indoor siren, check the link JA-110A for more information;
► JA-163A - wireless outdoor siren, check the link JA-163A for more information;
► JA-150P - 2x wireless movement detector (PIR), check the link JA-150P for more information;
► JA-151ST-A - fire detector, check the link JA-151ST-A for more information;
► JA-151M - 3x wireless mini magnet contact, check JA-151M for more information;
► JA-192J - 2x key tag - check the link JA-192J for more information;
► SA-214 - battery for emergencies, check the link SA-214 for more information.

The JK-103KRY offers

up to 50 wireless or BUS hardwired zones
up to 50 user codes
up to 8 sections
up to 32 programmable outputs
20 independent calendars
system reports to 8 users by SMS
4 ARC settings
4 selectable reports to ARC

ncp insert certifications

Specifications JA-103KRY

Power source	230 V / 50 Hz, max. 0.1 A, security class II
Backup battery	12V; 2.9Ah (2.2 to 7Ah)
Maximum time needed for battery recharge	72 h
Max. continuous control panel current output	400 mA
Max. continuous current output for 12 hour backup	125 mA with a 2.6Ah battery
Max. number of enrolled devices	50
LAN communicator	Yes
Battery	A type (EN 50131-6)
QUAD-BAND GSM communicator	4G (LTE) 800 / 900 / 1800 / 2100 / 2600 MHz (B20, B8, B3, B1, B7)
Operating frequency JA-111R module	868.1 MHz ISM band
Invalid code-entries exceeded	After 10 incorrect code entries
Event memory	approx. 1 million of the latest events including date and time
Security rating	2 according to EN 50131-1, EN 50131-3-6, EN 50131-5-3
Operating environment	Class II indoor general (-10 to +40°C), according to EN 50131-1
Radio transmission conformity	ETSI EN 300220 (R module), ETSI EN 301 419-1, EN 301 511
EMC conformity	EN 50130-4, EN 55022, ETSI EN 301 489-7
Security conformity	EN 60950-1
Can be operated according to	ERC REC 70-03
CLIP protocol (caller ID + SMS)	ETSI EN 300 089

Compare the 103KRY with the 107KRY control panel

JA-103KRY	Comparison control panels JA-100 alarm system	JA-107KRY
868 MHz	Communication protocol radio module	868 MHz
50	Number of wireless or BUS hardwired zones	230
50	Number of user codes	600
8	Number of sections	15
32	Number of programmable outputs	128
20	Number of independant calenders / timers	64
8	Number of users system reports to by sms	50
258 x 214 x 77 mm	Dimensions	360 x 300 x 105 mm
Optional 2G or 4G	GSM / GPRS communicator	Optional 2G or 4G
yes	Built in LAN communicator	yes
yes	MyJablotron App	yes
Private / Business	Use	Private + / Business +
